Van-Den-Hul The Integration Digital - 1001

Van-Den-Hul The Integration Digital

  • 0 valoraciones

En stock

Amplía tu garantía

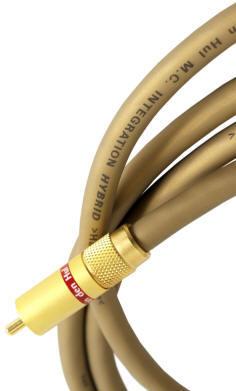

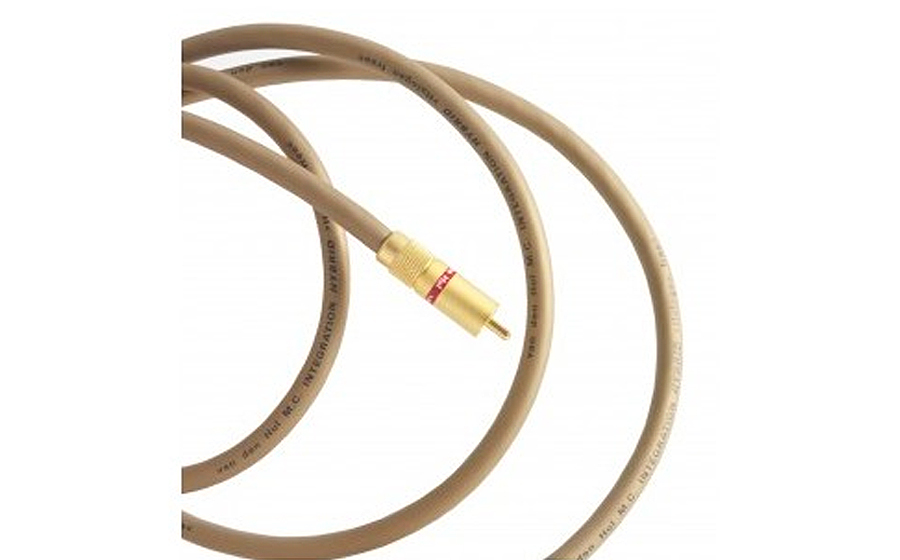

Cable interconecxion digital coaxial


Cable Type: Triple screened quadruple core / star quad (Balanced)
Conductor Material: FUSION TECHNOLOGY: amorphous Cu/Zn/Ag alloy + HYBRID: Linear Structured Carbon ® saturated layer(s)
Design Purpose / Application Area(s): Balanced and unbalanced audio interconnect; Microphone and musical instrument cable
Eff. Conductor Ø / Eq. AWG No. / Strands: Cores: 0.16 mm² / Cores: ~AWG 25 / Cores: 7; Screen: 180
External Diameter / -Dimensions: 7.8 mm.
Resistance (20 °C / 68 °F): Cores: 0.43 Ohm/m.; Screen: 0.62 Ohm/100 m.
Capacitance: 86 pF/m. (in balanced star quad mode)
Characteristic Impedance: ~110 Ohm (in balanced star quad mode); Allows AES-EBU standard digital audio transmission
Insulation / Dielectric Strength / Test Voltage: Cores: PE foam; Jacket: HULLIFLEX ® 4 / 300 Vrms min.
Connector Types Suitable: Our RCA type C - 8.0; Neutrik XLR; Neutrik 1/4" (6.3 mm.) Jack/Phone plug; Custom mountable on ordered lengths.
Standard Sales Units / -Lengths: Stereo pair packed with RCA (unbalanced) or XLR (balanced) connectors in 0.6, 0.8, 1.0, 1.2 and 1.5 m. lengths.
Other lengths: please consult your van den Hul dealer or the van den Hul distributor in your country.
Jacket Colour(s) Available: Gold tone
Remarks: Connectors need to be factory mounted.
RCA connector terminated units are equipped with a ground-end marking sticker.
