Características
technical specificationslaser type dual focus, semiconductor laser
playable disc types DVD-Video
CD
CD-R
digital audio outputs
supported output formats Linear PCM
Dolby Digital
DTS
sample rates 44.1, 48.0 and 96.0 kHz
word lengths 16, 20 and 24 bit
IEC958 output level 0.5 V p-p into 75 Ohm load
TOSLINK™ output level -18 dBm (wavelength 660 nm)

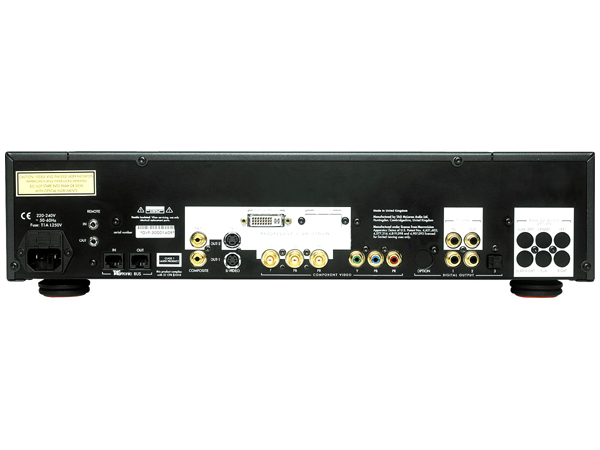

video outputs
S-Video and composite video outputs
supported output television standards PAL-B/D/G/H/I
PAL M
NTSC-M
output levels
composite 1 V p-p (75 Ohm load, negative sync.)
S-Video Y-signal: 1 Vp-p (75 Ohm load, negative sync.)
C-signal: PAL: 300 mVp-p (75 Ohm load)
NTSC: 286 mVp-p (75 Ohm load)
component video outputs Y-signal: 1 Vp-p (75 Ohm load, 300 mV sync.)
Pb(B-Y)-signal: 700 mVp-p (75 Ohm load)
Pr(R-Y)-signal: 700 mVp-p (75 Ohm load)
power requirements 100/115/230 V AC 50/60 Hz by model variant
power consumption operating: 35 W (typical)
standby: less than 5 W (typical)
dimensions 445 x 320 x 111 mm
weight 9 kg (approx.)
operating temperature 5 – 35° C
