Características

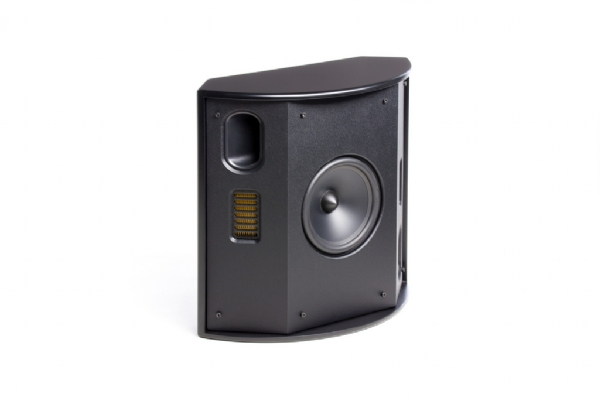

Dual Folded Motion XT tweeters in a wide- dispersion array ideally suited for surround channel applications.
Surround. 1 tweeter + 1 woofer 6.5''. 55-25.000 Hz. 93 dB. 5 ohmios. 37,9 x 35,5 x 17,2 cm. Negro (ud)
S P E C I F I C A T I O N S
Frequency Response
55–25,000 Hz ± 3 dB
Horizontal Dispersion
160°
Vertical Dispersion
30°
High Frequency Transducer
Two 1.25” x 2.4” (3.16cm x 6.1cm) Folded Motion
Transducers with 4.5” x 2.75” (11.4 x 6.98cm) diaphragm
Low Frequency Transducer
6.5” (16.51cm) paper cone with cast-aluminum
basket. Non-resonant asymmetrical chamber format
Sensitivity
91 dB/2.83 volts/meter
Impedance
5 Ohms. Compatible with 4, 6 or 8 Ohm rated amplifiers.
Recommended Amplifier Power
20–200 watts per channel
Crossover Frequency
2,300 Hz
Cabinet
Two bass-reflex ports
Components
Custom air core coil inductors. Polyester film capacitors
in series and low DF electrolytic capacitors in parallel.
Tweeter thermal/current protection
Inputs
Push style with banana jacks
Weight
16 lbs. (7.3 kg)
Dimensions
14.9” x 14” x 6.8” (37.9cm x 35.5cm x 17.2cm)
Specifications are subject to change without notice.
