Características
Motion SLM XL perfectly complements the aesthetic of today’s larger TV’s, as wellas feature two additional passive radiators versus regular Motion SLM for even
better bass performance! A great combination in an astonishingly slim design. An
advanced resolution Folded Motion tweeter, two 4-inch high-excursion fiber cone
woofers, and four passive bass radiators for maximum controlled low-end bass
extension round out the technology behind this ultra-slim profile design.
Slender Profile & Stunning Performance

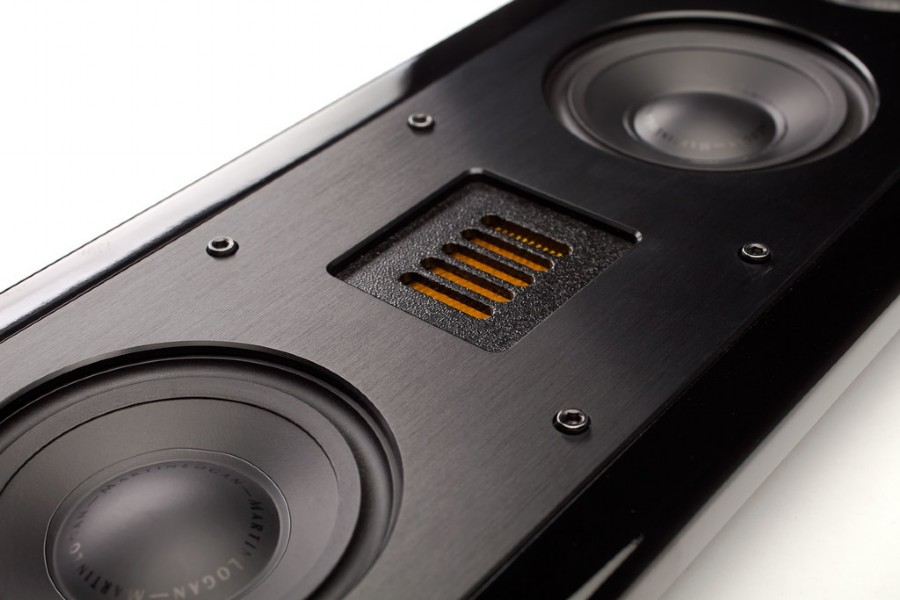

The secret to the Motion SLM XL’s outstanding performance is the innovative dual 4-inch,
ultra-slim fiber cone woofers and four 4-inch passive bass radiators, paired with a Folded
Motion tweeter to create stunning acoustical alchemy typically found in much larger
speaker systems. Hidden discretely underneath the grille, the drivers are held securely in
place by a solid, black-anodized brushed aluminum baffle. The high-gloss black Motion
SLM XL cabinet is only 1.45-inches thin, for a total wall protrusion of 1.83-inches with
magnetic grille and included wall mount bracket
The Perfect LCR Solution for Today’s 65” plus TV’s
The Folded Motion tweeter has an 80° x 80° dispersion pattern, which allows the Motion SLM XL to sound
exactly the same in a horizontal or vertical orientation, making them perfect for Left-Center-Right (LCR) system
applications. The logo on the grille is magnetic and can move and rotate to the proper atheistically pleasing
location in any orientation. Each speaker includes a curved gloss black base allowing the Motion SLM XL to sit
on a shelf or equipment cabinet. Also included are “kick-stand” brackets that attach to the back of the cabinet,
allowing them to free-stand for center channel applications.
Frequency Response
100–25,000 Hz ±3dB
Dispersion
80° x 80°
Sensitivity
94 dB/2.83 volts/meter
Nominal Impendance
4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers.
Recommended Amplifier Power
20–140 watts per channel
Crossover Frequency
3,100 Hz (2-way design)
High-Frequency Driver
1” x 1.4” (2.6cm x 3.6cm) Opening
with 5.25” x 1.75” (13.3cm x 4.4cm) diaphragm.
Low-Frequency Drivers
Two 4” (10.2cm) paper cone.
Four 4” (10.2cm) paper cone passive radiators.
Weight
9lbs. (4.1kg) each
Overall Dimensions (with wall bracket)
34.1” (86.7cm) Height
6.4” (16.2cm) Width
MOTION SLM XL
