CaracterísticasTweeter 1'', woofer 6,5''. 47-20.000 Hz. 89dB. 4 ohmios. 24,2 cm de diámetro.

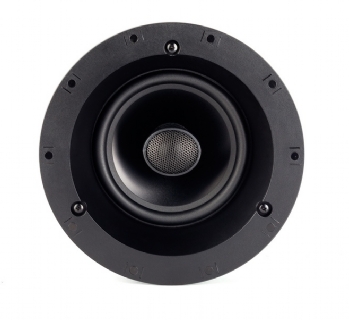

The Helos 12 delivers legendary MartinLogan quality and performance in a compact, high-resolution in-ceiling loudspeaker. Helos 12 effortlessly provides extreme sonic accuracy from its a 1-inch neodymium soft dome tweeter mounted in an aimable stem, a high-rigidity aluminum cone woofer, and proprietary Vojtko crossover topology.
Designed to Aim at the Listening Position

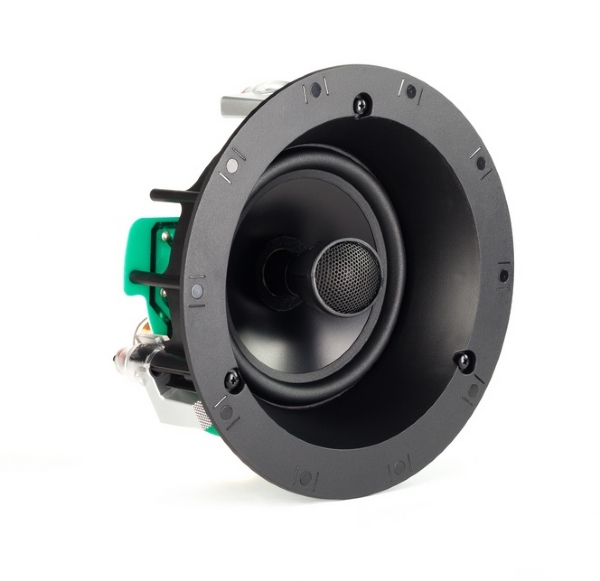

Helos 12 features a high-resolution neodymium tweeter mounted on a pivoting tweeter stem that easily aims at the primary listening location. This design allows the audience to enjoy the highest levels of in-ceiling audio performance, while still providing rich, detailed sound throughout the entire room.

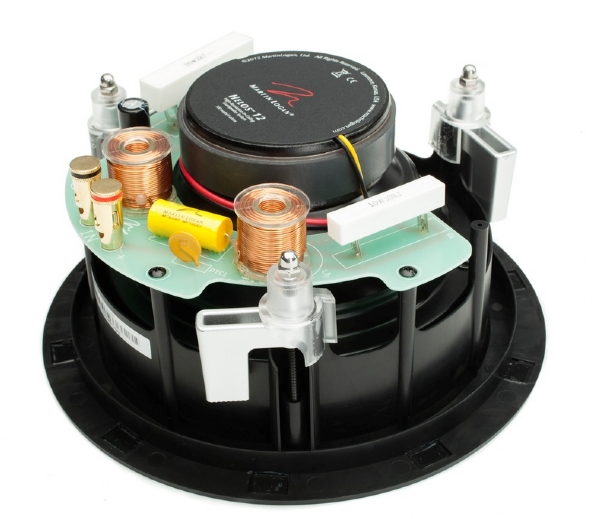

A robust mounting-lock system allows quick, trouble-free installation. When not in use, the constant-control mounting locks are held securely within a self-contained housing. When moved into place during installation, they couple the speaker's chassis firmly to the ceiling. And if the speaker is ever removed, the locks retract and latch themselves back in their housings.
Each Helos 12 speaker comes with a full-size installation template that features quick-reference instructions, and die-cut guides for marking the cutout hole.

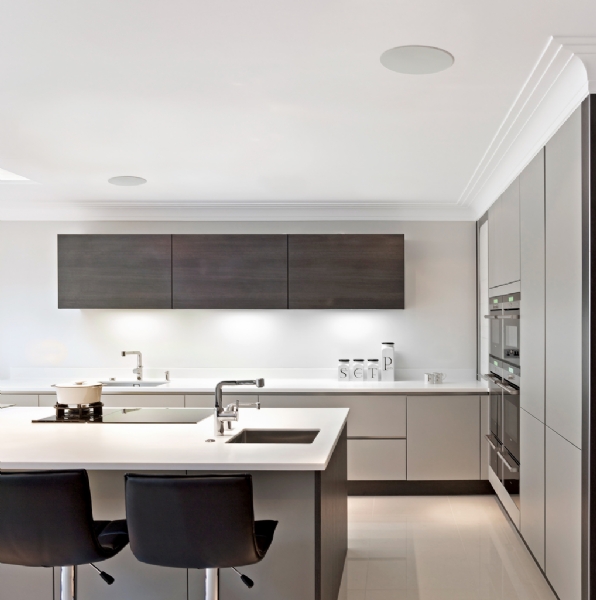

MartinLogan's new architectural speakers feature ultra-low profile, paintable micro perforated grilles with no visible bezel for an near invisible integration into any wall or ceiling. A magnetic system secures grilles easily into place, reducing the risk of warping or damage during installation.
Helos 12 Helos 22
Frequency Response 47–20,000 Hz ±3dB
Sensitivity 89 dB/2.83 volts/meter
Nominal Impedance 4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers.
Recommended Amplifier Power 20-200 watts per channel
Crossover Frequency 2800 Hz
High Frequency Transducer 1" (2.5 cm) neodymium soft-dome tweeter
Low Frequency Driver 6.5" (16.5 cm) cast basket, high rigidity aluminum cones with extended throw drive assembly, thermal protection
Weight 4.5lbs. (2kg) each
Overall Dimensions 9.5" (24.2cm) Diameter
4.62" (11.7cm) Depth
Cut-Out Dimensions 8.35" (21.2cm) Height
8.35" (21.2cm) Width
Depth Required Behind Wall Surface 4.4" (11.2cm)
Projection From Wall Surface .2" (.45cm)
