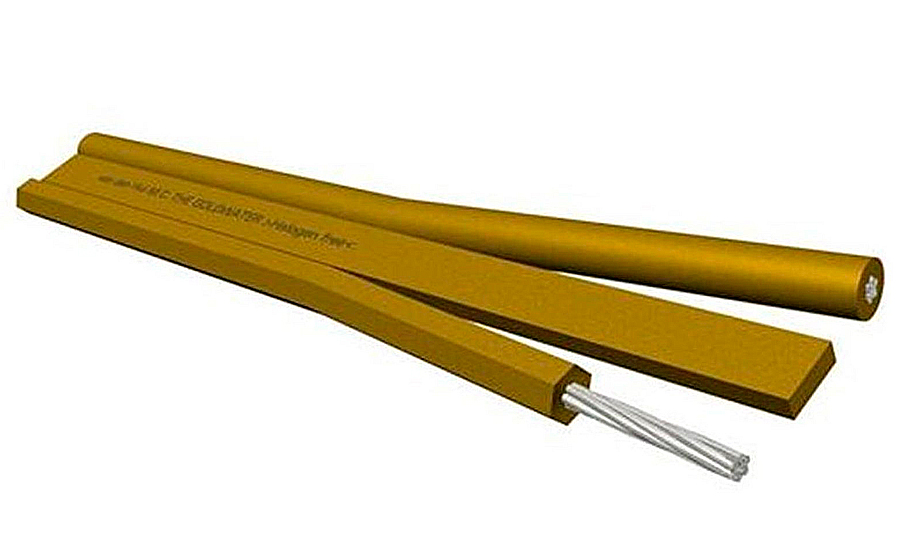

CaracterísticasThe GOLDWATER is a special version of our The CLEARWATER twin line loudspeaker cable.
In addition to its HULLIFLEX ® material jacket’s excellent impenetrability to environmental chemical agents, which after years of permanent exposure would be able to attack its Matched Crystal OFC strands through their extra dense defensive Silver coating, the extra embedded Gold coloured filler material assures maximum protection: by exhibiting excellent reflective properties to ultraviolet radiation (UV) from the sun, any corrosive chemical activity on the conductors is reduced to a minimum.
The GOLDWATER is especially intended for use as a twin line loudspeaker cable in areas with an increased corrosion activity such as industrial, coastal and humid tropical areas. Due to its maximum corrosion protection The GOLDWATER is excellently suited for use in permanent professional, commercial and industrial distribution setups such as church sound systems and shopping mall, airport and alike music distribution systems as well as in car hi-fi applications.
As with all cabling in corrosive environments, proper care should be paid to seal all cable ends against air penetration; (contaminated) air tends to flow in and out of cables due to each day’s temperature variations.
Apart from its jacket’s extra protective Gold coloured filler material and the extra dense silver layer on the conductors, the cable design doesn’t differ from our The CLEARWATER. Besides its UV protective function, the Gold colour cosmetically works out very nice.
Sonically this cable is a great product with a well balanced overall quality. There is no harshness and the spatial reproduction is superior.
Both leads each consist of 98 high purity dense Silver coated high purity Matched Crystal OFC strands with an effective cross-section area of 1.97 mm² closely approaching AWG 14.
The resistance of each lead is 0.9 Ohm per 100 m.
The external dimensions are: 16.6 mm. wide and 5.0 mm. thick.
The jacket on each lead is different in shape, and the flat middle-section between both leads has a printing on one side: both properties are easy polarity finders. Type printing on every 25 cm. (10") makes cutting of specified lengths very easy.
The GOLDWATER is available on 100 m. per reel in a 31 x 31 x 29 cm. box with a total shipping weight of 10.2 kg. and in custom made lengths with either our 3.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our DIY Screw-On Speaker Connectors.
Cable Type: Twin conductor
Conductor Material: High purity dense Silver coated high purity Matched Crystal OFC
Design Purpose / Application Area(s): Loudspeaker cable
Eff. Conductor Ø / Eq. AWG No. / Strands: 2x(1.97 mm² / ~AWG 14 / 98)
External Diameter / -Dimensions: 16.6 mm. wide; 5.0 mm. thick
Resistance (20 °C / 68 °F): 0.9 Ohm/100 m.
Capacitance: 22 pF/m.
Characteristic Impedance: -
Insulation / Dielectric Strength / Test Voltage: HULLIFLEX ® / 300 Vrms min.
Connector Types Suitable: Our 3.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our DIY Screw-On Speaker Connectors; Both custom mountable on ordered lengths.
Standard Sales Units / -Lengths: 100 m. reels; With connectors mounted to specifications: any length; Without connectors: please consult your van den Hul dealer or the van den Hul distributor in your country.
Jacket Colour(s) Available: Gold
Remarks: Is a version of The CLEARWATER with extra protection against corrosion in harsh environments.
Other twin-lead speaker cables in our AWG 14 range are: The CLEARLINE, The SKYLINE HYBRID, The SNOWLINE, The BRIDGE and The CLEARWATER.
