CaracterísticasThe little brother of Xtension guarantees superlative vinyl performance in a more compact size!
Xtension 10 Evolution is ideal for all, who look for sound quality of standard Xtension in a more compact size below 48cm width, to fit standard audio racks. It incorporates all of our 20 years experience in turntable design. Xtension 10 chassis is made from MDF filled with metal sand, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 22kg total turntable mass. The result is a unique combination of 'mass loaded' and 'floating turntable' design principles.
Instead of the old standard adoption of pure metal used for the main platter, we've found a perfect alloy which we damped on the inner side with Sorbothane®. Additionally we've glued recycled Vinyl records to the top (which act as a perfect mat) and bake this 'sandwich' before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultrasilently on an inverted ceramic ball bearing with magnetic suspension.
The Pro-Ject 10cc Evolution with its tonearm base also benefits from 'high-mass' technologies, and is isolated from the main board by a sheet of Sorbothane®. To use this tonearm with a wide range of top quality phono cartridges, from 4 to 14g. it comes with a set of 4 different Sorbothane®- damped counterweights. Xtension 10 Evolution comes with a beautiful dustcover with adjustable hinges, as well as in high gloss lacquer finishes: mahogany, piano and olive.
Pro-Ject Audio Systems offers their highend turntables with premium 5pin>RCA unbalanced arm cable or - by request - with premium balanced 5pin>XLR connection to Pro-Ject Phono Box RS preamplifier. Phono Box RS offers balanced phono inputs, what guarantees superior results in highend vinyl reproduction with a balanced signal source.
NOTE: The signal source and the receiving device have to be equipped with balanced connections. Transmission of audio signals in a balanced mode reduce the influence of interference due to external stray electric fields significantly.

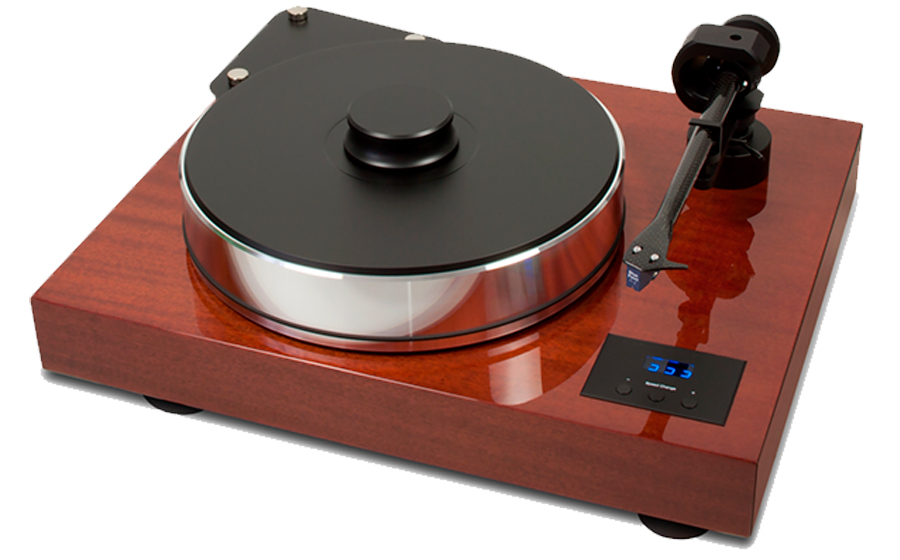

Pro-Ject Xtension 10 Evolution
Speed 33 / 45 / 78 Upm (Speed Box DS built-in)
Acrylic dust cover yes
Pro-Ject tonearm cable included Connect it 5P-C
Aluminium feet Magnetic supported & Sorbothane damped
Turntable main bearing damping heavy weight metal block
Max. speed variance ±0,08%
Max. wow and flutter ±0,01% Max.
Platter weight/diameter 5,7kg/300mm
Effective arm length / overhang 254mm / 16mm
Effective tonearm mass 8,5g
Tracking force range 10-30mN
Cartridge weight range from 4 - 14g (4 different counterweights included)
External power supply (prim/sec) 220 - 240V/50Hz / 16V/1.000mA AC
Power consumption 15W (max.)
DimensionsWxHxD lid closed (lid open) 480 x 235 (495) x 400 (535)mm
