Brinkmann Mono - 5975

Brinkmann Mono

12.950,00€
Entrega en 1 semana Avisadme con stock

Amplía tu garantía

Financiación 10 meses sin intereses, TAE 4,5%

+ info

Financiación ofrecida por Banco Cetelem S.A.U
El importe de la última cuota puede ser superior o inferior al resto debido al efecto del redondeo de los decimales.

Etapa de potencia mono Precio por pareja

Características

Small in size with an astonishing level of fit and finish that exudes the quality of workmanship both inside and out and with a circuit topology that lends itself to the production of loud and soft musical passages and realism.

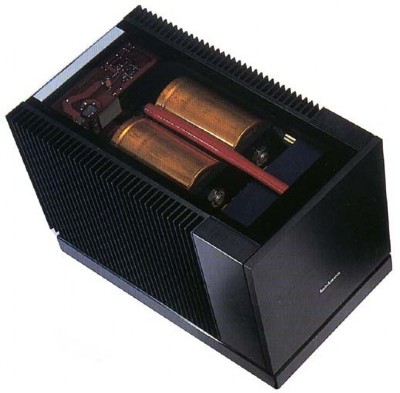

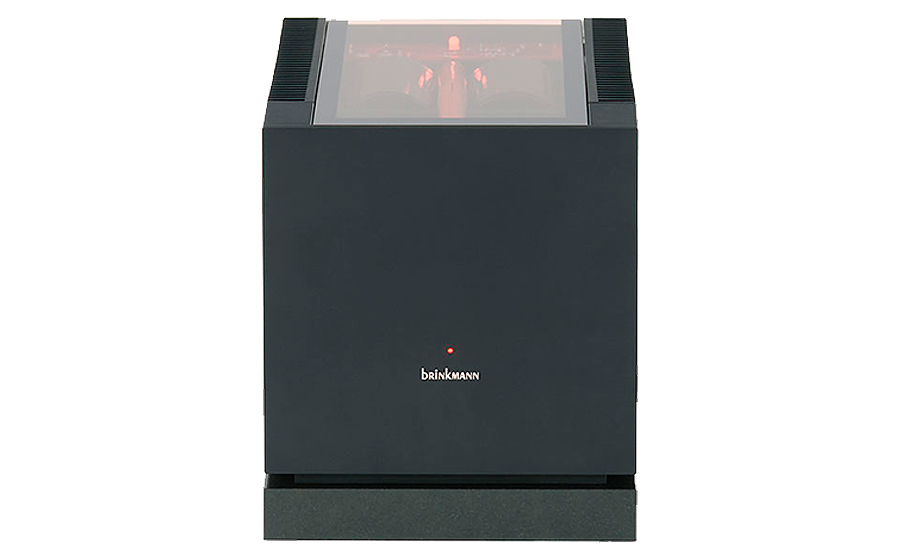

As with all Brinkmann Audio components the top plate is made from tempered glass allowing the owner a view to the internal beauty of the amplifier and a one inch thick granite platform sized to the chassis that is designed to allow protection from external vibration and assists in heat dissipation.

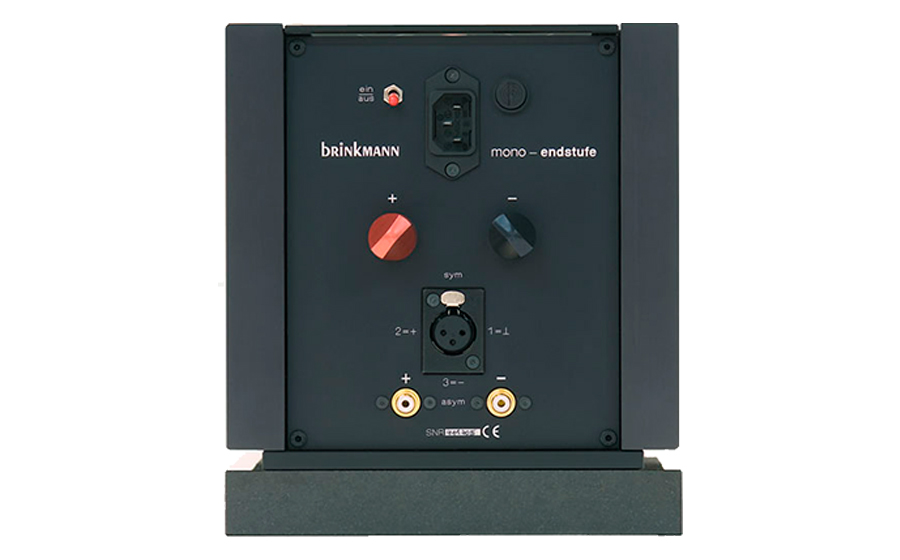

Mono AmplifierTo prevent electrical interference a symmetrical circuit- topology has been utilized. All amplifier-stages are doubled : they carry the signal in either the original wave-form as well as in an inverted one, which is phase-shifted by 180 degrees. In the output-stages the two signals are fed back together to form one signal again. This cancels out any possible component-coloration and all other interferences and allows for an untainted flow of music. Thus the symmetrical topology of our preamps finds its obvious continuation in the symmetrical input-stages of the MONO amps, which are equipped with both XLR balanced and single ended RCA phono-sockets with an additional phono socket that can be used to invert phase.

The extremely impulse-proof power supply, built around a 500 VA transformer which allows for short time power in excess of 1500 Watts and four large Roederstein condensers, the very compact construction with the shortest possible feeds plus four high power output-transistors which are directly feeding the output-terminals through a Diamond topology output-stage without negative feedback allow for a 2MHz fast output of power.

Although there is no negative feedback used in the output stage it remains of low ohmic resistance at any phase-angle and at all frequencies.

The output-stage is driven by a line-driver stage, which is built around the same topology and circuit design of our preamps. Each MONO amplifier is DC-coupled, a DC-detection-circuit prevents offset from a preamp to generate DC at the output-stage. Should the MONO amp DC protection circuit detect any DC voltage, the amplifier is immediately muted.

The Brinkmann Audio Mono Amplifier: embracing our long tradition of applying state-of-the-art technology in the name of music.
Technical Specifications

    * Mono Power Amplifier
    * Output Power RMS:
      8 Ohm: 175 W, 4 Ohm: 250 W
    * Minimum Load:
      2 Ohms
    * Damping:
      load 8 Ohms: 80
    * Distortion:
      half power 0.1%
    * Input sensitivity and resistance:
      unbalanced input 775mV/1kOhm
    * Input sensitivity and resistance:
      balanaced use ± 390mV/ ± 1kOhm
    * Power Consumption full power:
      load 8 Ohms: 380 Watts
    *
    * Stereo Power Amplifier
    * Power output both channels driven:
      load 4/8 Ohm - 120/80 W
    * Minimum Load:
      2 Ohms
    * Power output bridged:
      load 8 Ohms: 240 W
    * Damping:
      load 8 Ohms: 80
    * Distortion:
      half power 0.1%
    * Input sensitivity and resistance:
      unbalanced input 775mV/1kOhm
    * Power Consumption full power:
      load 8 Ohms: 380 Watts
